Product & Services Catalog
Click the title or image to see our standard products and their prices. If you want something special, ask.
Hydrogen Purifiers
Purifies commercial or cylinder hydrogen to 99.999995%.

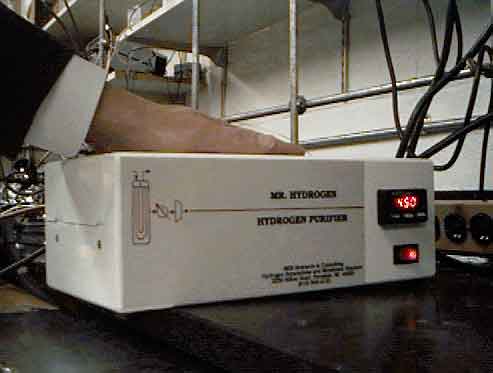

REB Research makes hydrogen purifiers and hydrogen purification modules that
operate at 100 to 500 C, and 0 to 200 psi. Our Mr. Hydrogen hydrogen purifier
is a complete, easy to use unit that delivers ppb quality hydrogen gas for use
in gas chromatographs and electronic manufacture. In these applications it saves
approximately $400/cylinder compared to UHP-Zero grade hydrogen. We also sell the
purifier modules alone, for OEM and specialized uses like isotope separations,
and mobile hydrogen generation, e.g. by methanol-water reforming. Our purifiers
and membranes resist fouling from water, methane, ethane, CO, CO2, and ppm levels
of H2S. Because our membranes can operate at lower temperatures than traditional
palladium-silver, they can pass fewer impurities: 1 to 40 ppb verses
about 1 ppm for palladium silver.
See Hydrogen output vs temperature and pressure
and Flux vs time. For more about our membrane
technology, see our papers.
Membrane Reactors
Exceeds the limits of closed-system, equilibrium reactor thermodynamics in terms of
extent of reaction and recovery at a given reactor temperauture and pressure.
Generate ultrapure hyrdogen from methanol, ammonia, or hydrocarbons at a greater extent than
normally possible. Make benzene from methane.
Membrane reactors combine a high-pressure reactor with a membrane extraction of a reaction
product to lower pressure. Because of this, the reaction equilibrium is shfted forward allowing
the user to generate ultrapure hydrogen at near-total conversions from methanol, hydrocarbons,
or ammonia, even at high reactor pressures. Such reactors are much more efficient and compact
than any alternative of sequential reactors and separators.
Click here for an essay on the advantages of
membrane reactors for use with fuel cells.
Me100 Methanol Reformer/Hydrogen Generators
Generate hydrogen without electrolysis. The only generator that makes Ultra-Pure H2 from methanol - water rerforming.
A complete methanol-water refomer/ hydrogen generation solution.
Output pure hydrogen to feed a fuel cell, or for brazing and other applications.
The REB (Me100) Hydrogen Generator, the first of its kind, provides a unique source of H2 for fuel cell tests,
gas chromatography and other laboratory uses. At 17" X 13" X 13" and 15 lbs.,
It's the size of a microwave oven and fits comfortably in a rack.
Make 99.99995% pure hydrogen from a 1:1 mix of methanol and water.
Up to 1.2 slpm H2 ouput, enough to generate 100 W in a standard PEM FC.
Adjust the H2 pressure and flow rate by varying the methanol-water input.
Hydrogen delivery to 40 psi, follows load. Waste gas delivered separately.

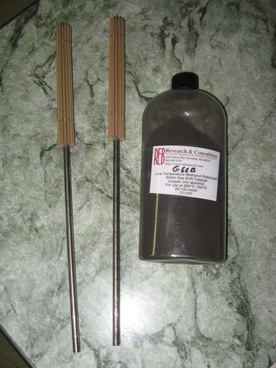

Catalysts/Sorbers
Reforming and water gas shift catalysts in mixed 20 to 100 mesh sizes;
provide an optimal balance between low entrainment and high heat and mass transfer.
As part of our sandwich membrane work, we started deveolping 2 types of hydrogen sorbers.
Sandwich metallic and organo metallic. The latter involve fullerenes and work in air.
We make the only line of non-flammable, non-carcinogenic (as best we know) hydrogen sorbers.
Our metallic sorbers also have exceptional capabilities when used in metal hydride batteries.
Consulting Services
Make use of REB Research's 30+ years'
experience in hydrogen transport, absorption, separations, generation, membrane reactors, and isotope effects.
Consulting prices, plus a selection of papers and technical links.
