REB Research Hydrogen Purifiers
HYDROGEN PURIFIER PRICES
Purify commercial purity hydrogen, 99.5% pure, to 99.999995%: better than UHP-zero grade. A hydrogen purifier will save the user of UHP-Zero grade hydrogen about $600/cylinder based on the current prices of commercial purity and UHP-Zero hydrogen gas. Our hydrogen purifiers find use on GCs, in electronic production, and in isotope recovery applications, e.g. involving deuterium - tritium separation. Sold as hydrogen purifier modules or as the Mr. Hydrogen®, a complete, user - friendly, hydrogen purifier unit complete with a heater, temperature control, bleed-flow control, etc.
HYDROGEN PURIFIER MODULES: The
guts of a great hydrogen purifier for laboratory and OEM customers.
Unless specified, modules include the purifier cell, an internal bleed flow
regulator, a heater and a thermocouple. Output is listed for 200 psi upstream, 400 °C operation and delivery at 1 psi above atmosphere.
For other temperatures and
pressures, calculate the output using the flux chart.
0.5 slpm purifier module does not include TC, bleed
regulator or heater: $1870
0.5 slpm purifier module with a bleed regulator and a K thermocouple: $2220

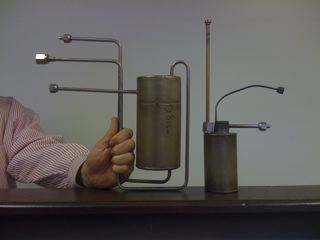

| Two REB hydrogen purifier cells: a 25 slpm purifier cell in hand, and an 8 slpm cell standing.
|
4 slpm - $3700 4 slpm with VCR fitting - $4050 8 slpm (shown at left) - $5000 8 slpm with VCR fitting - $5350 12 slpm - $6270 12 slpm with VCR fitting - $6620 15 slpm - $7500 15 slpm with VCR fitting - $7850 25 slpm - $12000 25 slpm with VCR fitting - $12350 36 slpm - $15500 36 slpm with VCR fitting - $15850 50 slpm - $21500 50 slpm with VCR fitting - $21850 75 slpm - $31350 75 slpm with VCR fitting - $31700 |
Mr. Hydrogen (TM) Hydrogen Purifier
Complete system, ready to use out of the box; combine your choice of purifier module with a heater, a fixed bleed control, a temperature control, insulation, fittings, etc.
Shown at right. Specify 120 V or 240 V operation.
Your price = Cost of purifier module + $5000.
Speciatly units can be made with internal alarm -shut-off systems, redundant temeprature controllers, and/or hydrogen leak detectors. To order contact us.
